Understanding the Heat Pump Reversing Valve

Heat Pump Reversing Valves

What They Are, How They Work, and When They Need Attention

If you rely on a heat pump for year-round comfort, you already know how convenient it is to have a single system that can switch between heating and cooling based on nothing more than your thermostat settings. But have you ever wondered how that magic happens? No, it’s not a team of HVAC elves quickly reconfiguring your equipment every time the need arises – it’s a small but essential component called a reversing valve – and it's the one component that literally makes your unit a heat pump.

Oct 14, 2025

What Is a Heat Pump Reversing Valve?

A reversing valve is a key component in your heat pump that allows it to switch between heating and cooling modes. It accomplishes this by reversing the direction of refrigerant flow, which is the heart of the heat exchange process.

Components of a Reversing Valve

While the design can vary slightly by manufacturer, most reversing valves include:

A slide or spool that shifts to change the flow direction
A solenoid coil that activates the movement
Four refrigerant ports connecting to the compressor, indoor coil, and outdoor coil

The reversing valve is mounted near the compressor in the outdoor heat pump unit and plays a central role in your system’s ability to respond to thermostat settings throughout the year.

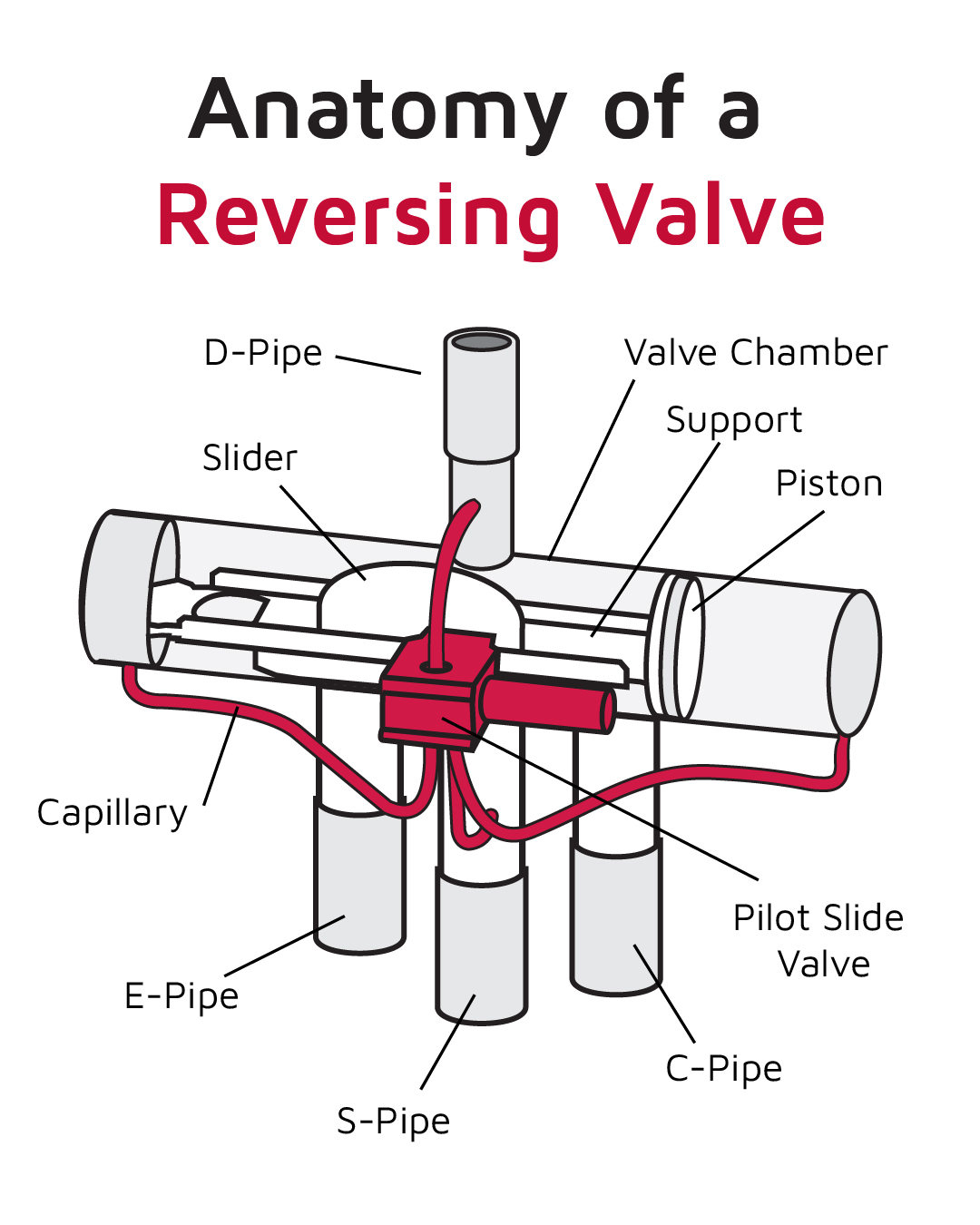

Diagram of heat pump reversing valve

Role in Heat Pump Operation

In cooling mode, the valve routes hot refrigerant to the outdoor coil, allowing heat to be released outside. In heating mode, the flow is reversed—hot refrigerant is sent indoors to warm your home. Without this valve, your heat pump could only operate in only one direction. much like an air conditioner.

How Does a Reversing Valve Work?

The reversing valve is controlled by an electrical signal from your thermostat. When your temperature settings call for the system to switch modes, it sends a signal to the solenoid, which moves the internal slide, changing the direction of the refrigerant flow.

This change allows the indoor and outdoor coils to swap roles:

In cooling mode, the indoor coil acts as the evaporator (absorbing heat), and the outdoor coil acts as the condenser (releasing heat).
In heating mode, it’s the reverse.

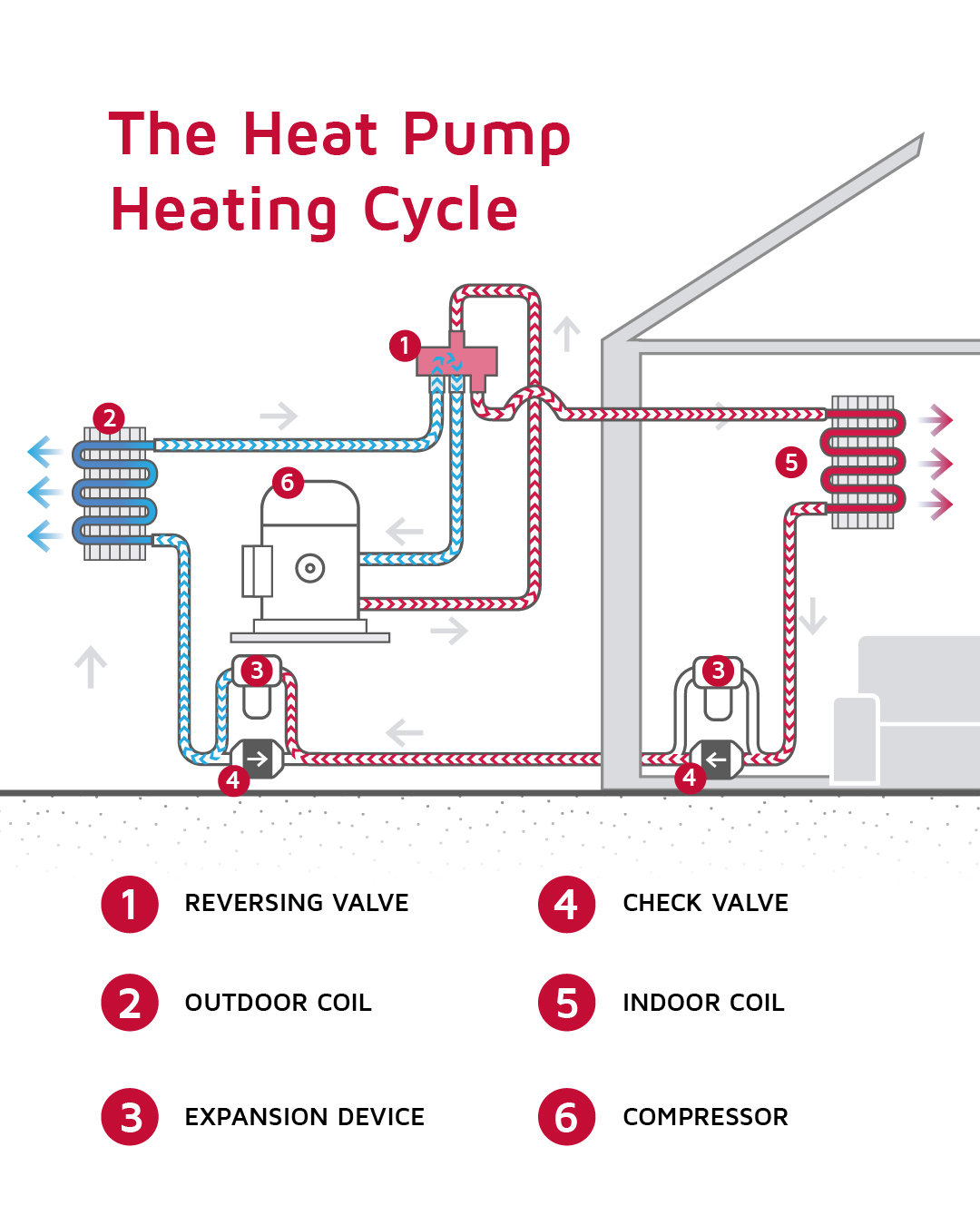

Heating cycle of a heat pump

This makes the reverse valve critical to proper operation and refrigerant flow within your system. Proper refrigerant flow is essential not only for heating and cooling but for maintaining system efficiency, preventing freeze-ups, and avoiding compressor damage.

Signs Your Heat Pump Reversing Valve Needs Attention

Like any mechanical component, the reversing valve can develop problems over time. Here are a few signs your valve might not be working properly:

1. Stuck in One Mode

If your heat pump heats just fine but won’t cool – or vice versa – it could be a stuck reversing valve.

2. Short Cycling

Frequent on/off cycling without reaching the desired temperature may indicate a malfunctioning valve struggling to maintain the correct mode.

3. Unusual Noises

A clicking or hissing sound coming from the outdoor unit when switching modes can signal trouble with the valve or solenoid.

4. Poor Heating or Cooling Performance

Even if the system is running, you may feel lukewarm air coming through the vents, meaning the refrigerant isn’t flowing as it should.

If you notice any of these issues, it’s time to take action. The longer a reverse valve issue goes unresolved, the greater the risk of compressor damage or complete system failure – which means more system downtime and high repair or replacement costs.

Troubleshooting Common Reversing Valve Issues

While some HVAC issues can be addressed with simple at-home maintenance of corrective action, the reversing valve isn’t one of them. That said, here’s how to identify a potential problem before calling in a pro:

Check Thermostat Settings

If your thermostat is incorrectly programmed or malfunctioning, it can make it seem like your system isn’t switching modes when the real issue is with the thermostat.

Observe Mode Switching

If you switch the thermostat from “cool” to “heat” and nothing changes, or the system stops responding altogether, the reversing valve could be stuck or failing.

Listen for the Solenoid

A properly functioning solenoid will click or buzz when switching modes. If you don’t hear anything, the coil could be burned out or disconnected.

Important: Diagnosing and replacing a reversing valve requires handling refrigerant and accessing sealed system components. Always hire a certified HVAC technician for this repair.

Heat Pump Preventative Maintenance Tips

Though you can’t replace or repair a reversing valve on your own, you can reduce the risk of issues with regular care:

Schedule seasonal HVAC inspections – a technician will test the valve’s operation and catch early signs of trouble.
Change air filters regularly to maintain proper airflow and system efficiency.
Keep the outdoor unit clear of debris such as leaves, and ice, which can affect pressure and performance.
Respond promptly to performance changes – don’t wait until your system gets stuck in the wrong mode.

While the reversing valve may not be something you think about often, or were even aware of, it’s crucial to your heat pump’s ability to keep your home comfortable as the seasons change. When it’s working properly, it silently keeps your system running smoothly. When it fails, your system loses the ability to work properly, compromising its efficiency and your comfort.

If you experience any of the issues we’ve described here, don’t wait. Contact your local Lennox dealer and schedule a system evaluation. Our trained technicians can quickly diagnose reversing valve issues and get your heat pump back to keeping your home comfortable year-round.

This has been reviewed by Justin Huntington, Director of Product Management – Indoor Cooling, for accuracy. Justin brings over 12 years of expertise in the HVAC space.
